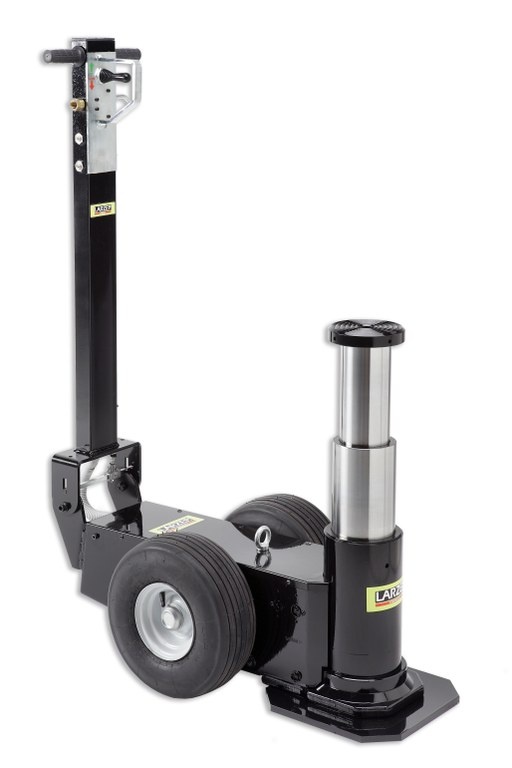

Larzep High Tonnage Air Service Jacks 60 to 150Tn

LARZEP HL

Mining Jacks

From 60 to 150 Tn.
Used for mining and other heavy duty vehicle maintenance applications.
Models with one stage and telescopic with two and three stages.
Operated by an air/hydraulic pump. Air pressure required: 8 to12 bar.
Air inlet port: 1/2" BSP.
Dual descent valve for greater control.
Fitted with self sealing pneumatic tyres for easy manoeuvrability.
Special hooks for transport.
Ram return is automatic. Constant and controlled speed under load, can be increased without load.
Check valves garantee load holding, even if an air or oil pipe is accidentally broken.
Equipped with an overpressure safety valve as protection against overloading.
Three-position handle can be lowered to place the jack under the load.
Easy to operate, with the control located on the end of handle.
Wide range of optional accessories: Remote pendant, manual emergency pump, safety load blocks, safety block holder, safety blocks kit, extensions and extension holder. (See below)

Capacity	Stroke	Model	Closed Height	Extended Height	Handle Height	Length	Width	Weight
Tn	mm	LARZEP	mm	mm	mm	mm	mm	kg
30/60	110+117	HL06022	220	447	1.385	940	460	93
50/80	196+222	HL08042	420	838	1.440	1.039	540	161
25/50/80	167+171+180	HL08052	341	859	1.440	1.040	540	143
100	445	HL10044	725	1.170	1.720	1.180	610	290
150	554	HL15055	900	1.454	1.720	1.250	620	385

Model	Remote Pendant	Manual Pump	Safety Blocks
LARZEP	LARZEP	LARZEP	50mm M/F	100mm M/F	100mm F/F	Holder	Kit*
HL06022	HLR	HLH	-	-	-	-	-
HL08042	HLR	HLH	HLB05017M	HLB10017M	HLB10017F	HLC100	HLS100
HL08052	HLR	HLH	HLB05017M	HLB10017M	HLB10017F	HLC100	HLS100
HL10044	HLR	HLH	HLB05017M	HLB10017M	HLB10017F	HLC100	HLS100
HL15055	HLR	HLH	HLB05021M	HLB10021M	HLB10021F	HLC150	HLS150

* Safety Block Kit HLS100: HLB05017M + 3xHLB10017F + HLC100

* Safety Block Kit HLS150: HLB05021M + 4xHLB10021F + HLC150
