Larzep Air Service Jacks 30 to 80Tn

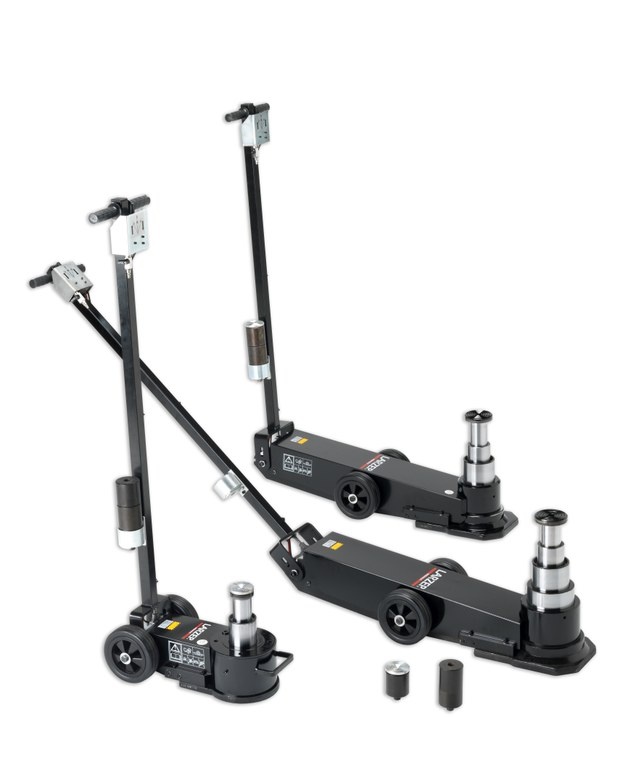

LARZEP HN

From 30 to 80 Tn.
Telescopic models with two and three stages.
Operated by an air/hydraulic pump. Air pressure required: 8 to12 bar.
Ram return is automatic. Constant and controlled speed under load, can be increased without load.
Check valves guarantee load holding, even if an air or oil pipe is accidentally broken.
Equipped with an overpressure safety valve as protection against overloading.
Three-position handle can be lowered to place the jack under the load.
A hardened serrated load saddle and extension pieces of 70 and 120 mm are supplied as standard.
Easy to operate, with the control located on the end of handle.

Capacity	Stroke	Model	Closed Height	Extended Height	Handle Height	Length	Width	Weight
Tn	mm	LARZEP	mm	mm	mm	mm	mm	kg
15/30	88+83	HN231	150	321	1.400	525	300	39
18/30/60	91+72+74	HN360	180	417	1.395	980	350	70
25/50/80	165+170+190	HN380/H	350	864	1.558	1.115	375	103
15/25/50/80	66+56+68+60	HN480	180	430	1.395	980	350	78
