One of the concerns in putting a torque tester into an environment where people are not calibration specialists is that incorrect selections will be made with the potential of incorrect tool setting and consequently joint failure.

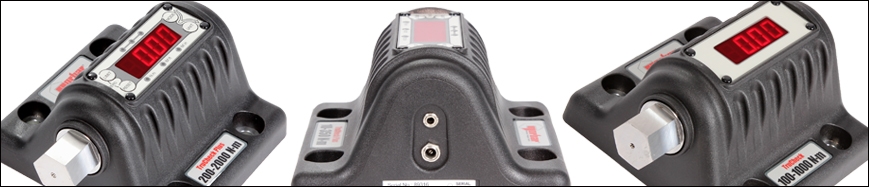

The 'TruCheck' torque wrench testers aim to cut the cost of purchasing a torque wrench calibration system, and remove the fears over the complexity of using such equipment.

MODE Button

1) Track Mode (‘trAC‘ is displayed). Display follows torque applied

2) Click Mode (‘CLIC‘ is displayed). Display shows first peak of torque applied. Serial data output of peak torque is automatically transmitted. Display automatically resets after 3 seconds. For use with ‘click’ type torque wrenches.

3) Dial Mode (‘dIAL‘ is displayed). Display shows peak of torque applied. Press RESET to clear the display.
For use with ‘dial’ and ‘electronic’ type torque wrenches.

UNIT Button

Press UNIT to change units of measurement.

RESET Button

Press RESET to reset display in Dial mode.
Serial data output of peak torque is also transmitted.
Press RESET to transmit serial data in Track mode.

LIMIT Button
1. Press LIMIT to enter target torque setting.

Display flashes between ‘SEt’ and the target torque setting.

• Press MODE to increase target setting. Hold to increase speed of change.
• Press UNIT to decrease target setting. Hold to increase speed of change.

2. Press LIMIT to enter ± percentage tolerance setting from 1 to 10%. Enter ‘0’ for no limits.

‘%’ and the ± percentage tolerance setting is displayed constantly.

• Press MODE to increase ± percentage tolerance setting.
• Press UNIT to decrease ± percentage tolerance setting.

3. Press LIMIT to finish. Display shows ‘FIN’ for 1 second.

All equipment is shipped with the factory calibration certificate.
Calibration services in iran are carried out by the Parla Tech.

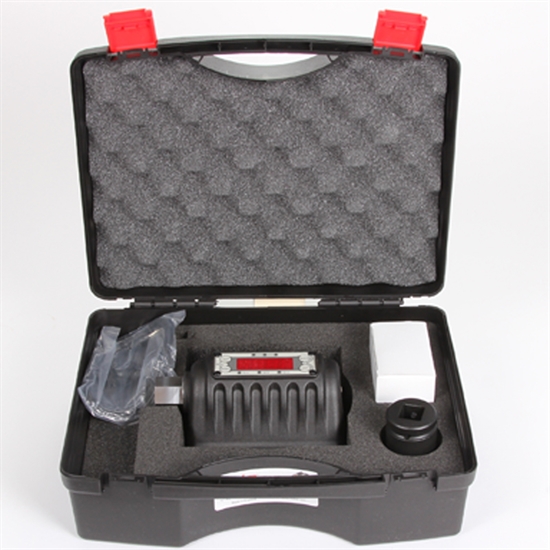

Delivery Includes

• TruCheck Plus test equipment
• Electric adapter
• Operation manual
• RS-232 data cable
• Shipped in protective special bag

* 43231 - Supplied with 3/4" square drive socket.
* 43245 - Supplied with 1" square drive socket.
