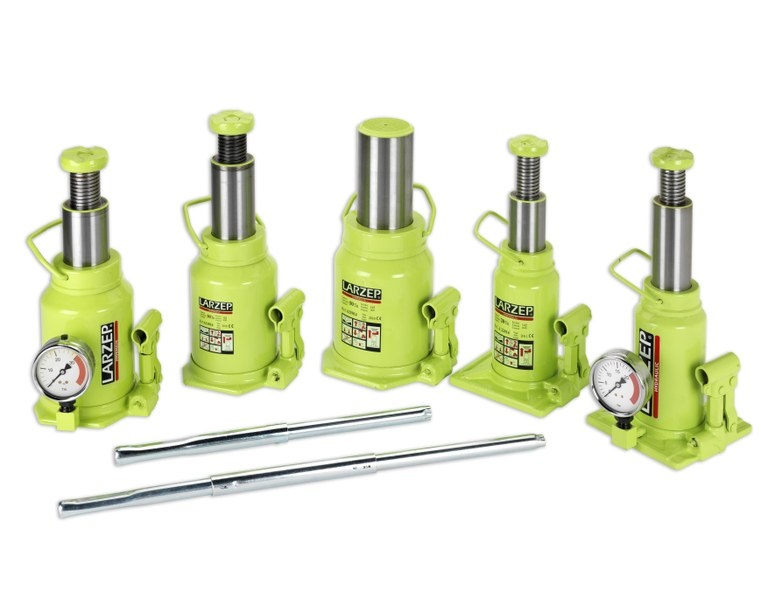

Larzep Bottle Jacks 2 to 50Tn

LARZEP A - AB- AC

From 2 to 50 Tn.
Up to 30Tn 'A' Models are single stage with screw extension.
20Tn and 30Tn 'AC' versions are supplied with load gauge, calibrated to read in tonnes with ± 1,6% accuracy.
'AB' versions are telescopic with two hydraulic extensions.
All models with safety relief valve.
Forged material base.
Supplied with zinc coated handle and individual cardboard box.
Bottle jacks will operate horizontally, provided that the pump element is at the lowest point.

Capacity	Model	Closed Height	Extended Height	Stroke	Base	Screw	Weight
Tn	LARZEP	mm	mm	mm	mm	mm	kg
2	A40211	172	372	112	103x105	88	3,9
3	A40311	172	372	112	103x105	88	3,9
5	A40515	212	468	146	110x112	110	5,0
8	A40815	220	483	148	124x127	115	7,5
10	A41015	220	483	148	124x127	115	7,5
15	A41515	231	498	154	140x142	113	10,1
20	A22014	214	421	142	160x168	65	8,5
30	A23014	222	429	142	154x164	65	11,0
50	A25014	216	361	145	180x190	-	19,9

Capacity	Model	Closed Height	Extended Height	Stroke	Base	Screw	Weight
Tn	LARZEP	mm	mm	mm	mm	mm	kg
20	AC22014	214	421	142	160x168	65	8,7
30	AC23014	222	429	142	154x164	65	11,2

Capacity	Model	Closed Height	Extended Height	Stroke	Base	Weight
Tn	LARZEP	mm	mm	mm	mm	kg
4	AB40434	265	610	345	124 x 128	7,5
10	AB21027	249	519	270	154 x 164	13,0

horizontal jack
