C12-Ton-B
One of the most important products we have developed and marketed is the 12-Ton Series Tool. When we developed the 12-Ton Compression Tool more than 40 years ago, it became one of the first in a long line of technological breakthroughs in highpressure hydraulics.

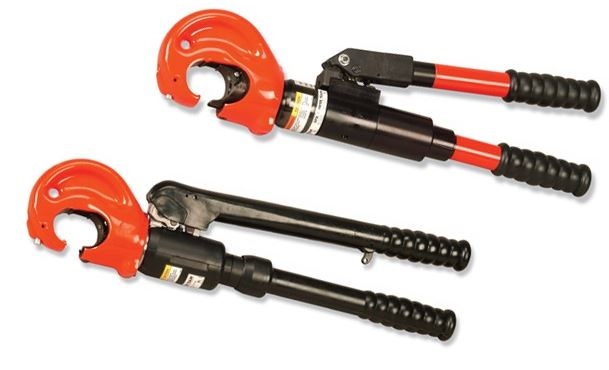

Compression Tools for U- or Shell-Type Dies
The proof of the success of the HHT Series Tool is evident since competitors, both foreign and domestic, have copied features and designed their tools to imitate ours. We continue to set the standard of the industry with durable, long-lasting hand and remote tools.
| Order No. | Crimping Force U.S. (tons) | Operating Pressure (psi) | Jaw Opening (in.) | Crimping capacity |
|---|---|---|---|---|
| C12-TON-B | 13.1 | 10,000 | 0.95 | See Below |
| C12-HHT-B | 13.1 | 10,000 | 1.187 | See Below |
| C14-HHT-B | 14.0 | 10,000 | 1.50 | 750 |
| C12-HHT Crimping Capacity | ||
|---|---|---|
| Copper | Aluminum | ASCR |
| No. 8 stranded through 500 MCM grounding terminals and splices | No. 8 stranded through 750 MCM terminals | No. 6 stranded through 556.5 26/7 stranding |
| No. 8 stranded through 250 MCM grounding taps and ¾” ground rod | No. 8 Stranded through 350 MCM splices | |
| No. 8 stranded through 750 MCM insulated and insulated terminals | ||
| Order No. | Overall Length (in.) | Overall Depth (in.) | Head Width (in.) | Weight (lbs.) |
|---|---|---|---|---|
| C12-TON-B | 22.81 | 3.00 | 8.56 | 13.6 |
| C12-HHT-B | 22.12 | 3.00 | 8.64 | 13.6 |
| C14-HHT-B | 23.28 | 3.10 | 8.38 | 17.4 |
