Hydraulic Punches

/

Portable Hydraulic Punching Heads

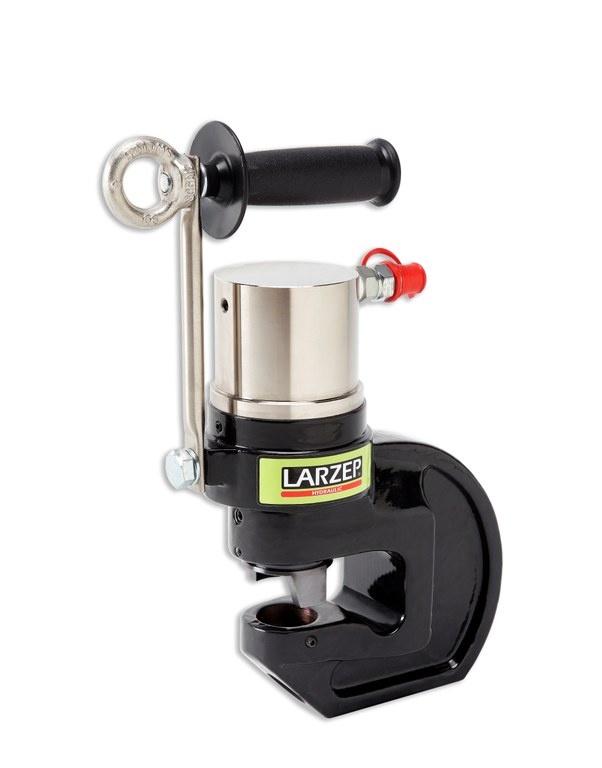

LARZEP PH

From 15 to 45 Tn.
Direct punching hydraulic machine designed for round, square or oblong puncher holes in mild steel sheets.
Lightweight, easy transport and handling, especially in confined spaces.
Provided with a male ball quick coupler AZ3321.
Used in electric conducting towers, metallic structures, bridges, etc.
For punches on all type of plates I-L-T. Depending on material, indicate if 14%, 8% inclination punchers are needed.
Material thickness depends on its hardness and should not exceed holes diameter.
Puncher and die are not included. Order them indicating the diameter required.
Material maximum strength: 37 kg/mm².
Working pressure: 700 bar.

Capacity	Model	Punching Outer ø min - max	Maximum Punching Thickness	Flange	Dimensions	Weight
Tn	LARZEP	mm	mm	mm	mm	kg
15	PH015	6 - 18	7	40	80 x 170 x 280	8,5

35	PH035	6,4 - 20,6	12,7	70	120 x 250 x 360	15

45	PH045	8 - 24	16	110	150 x 360 x 450	40
