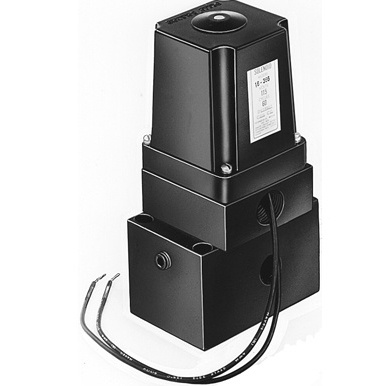

3-Way/2-Position Solenoid Valve
Application – Single-acting cylinders.
Actuation – Solenoid operated, 115 volt, 50 Hz.
Functions – Cylinder piston advances when solenoid is de-energized and pump is running. When solenoid is energized, oil is directed to reservoir, and piston returns. For “hold” position, pump is stopped with solenoid de-energized.
Used on these pumps – PE17, PE21, PE30, PE46, PE55, PE84, PE90, PE120, PE200, PE400, PQ60 and PQ120 series.
No. 9579 – 3-way/2-position solenoid valve, 115 volt, 50 Hz. Weight 4.4 kg.
No. 9569 – Same as 9579, except with 24 volt, 50 Hz solenoid.
No. 9570– Same as 9579 except with 230 volt, 50 Hz solenoid.
NOTES: Valves above are shipped without control switch. Use 202777 remote hand switch (see page 116). When this valve is mounted, the pump must be equipped with an outlet check valve.
