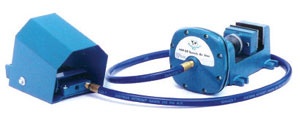

The Wilson Pneumatic Vise is available in sizes ranging from 5/8 to 1 1/2-inch (15.9 - 38.1mm) Outer Diameter and offers the most rugged, precision built, completely trouble-free air tool designed to remove spears from tubes. The vise comes complete with two five-foot air hoses, foot control valve with guard, and fittings ready for use. The Wilson Pneumatic Vise is 12 inches in length and 6 inches in width and height. Its jaw width is 3 inches and its jaw depth is 2 inches. The vise weighs 24 pounds with a maximum operating pressure of 150 pounds per square inch. Its gripping force is 15 times air line pressure and its maximum jaw opening (without jaw plates) is 3 inches
Pneumatic Vise offers the most rugged, precision built, completely trouble-free air tool to remove the spear from the tube. The vise comes complete with two 5-foot air hoses, foot control valve with guard, and fittings ready to use.
Length | 12" |
Width | 6" |
Height | 6" |
Jaw Width | 3" |
Jaw Depth | 2" |
Wt. (Vise Only) | 24 Lbs. |
Maximum Jaw Opening (Without Jaw Plates) | 3" |
Maximum Travel | 5/8" |
Maximum Operating Pressure | 150 psi |
Gripping Force | 15x Air Line Pressure |
Tube OD | Part No. |
1 to 1 1/2-Inch | 74705-0000 |
5/8 to 1-Inch | 74705-0625 |
