peration pressure 700 bar
Time and space saving
Fast press table adjustment
Food or hand pump operation

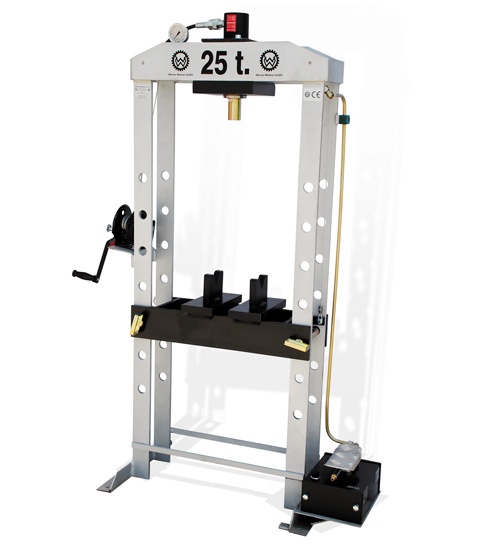

Applicable in automobile, commercial vehicle, agricultural machine workshops, as well as mechanical shops. Ideal for force fitting and extraction of bearings, bushings, shafts and bolts. Perfectly suited for embossing, bending, aligning and stamping. Press table can be positioned both up and down side by cable winch and holding bolts. The cylinders position can be laterally adjusted. Available with foot or hand pump and - for an extra charge - with air-hydraulic pump.
|Capacity||25ton / 246 kN|
|Hydraulic pump||700 bar (2-stepped)|
|Cylinder type||Single acting|
|Width between columns||540 mm|
|Lowest insert height||350 mm|
|Bore distance in height||100 mm|
|Table support width||180 mm|
|Cylinder stroke||130 mm|
SCOPE OF DELIVERY
Rugged frame press with press table, manometer and accessory set: 1 pressure tappet flat, 1 pressure tappet conical, ready to use cylinder. Delivery on euro-pallet, delivery time as agreed.
ADDITIONAL ORDER VERSION
Can be supplied with foot, hand or air hydraulic pump.
• Force extraction plate
2 Support plates with prism
